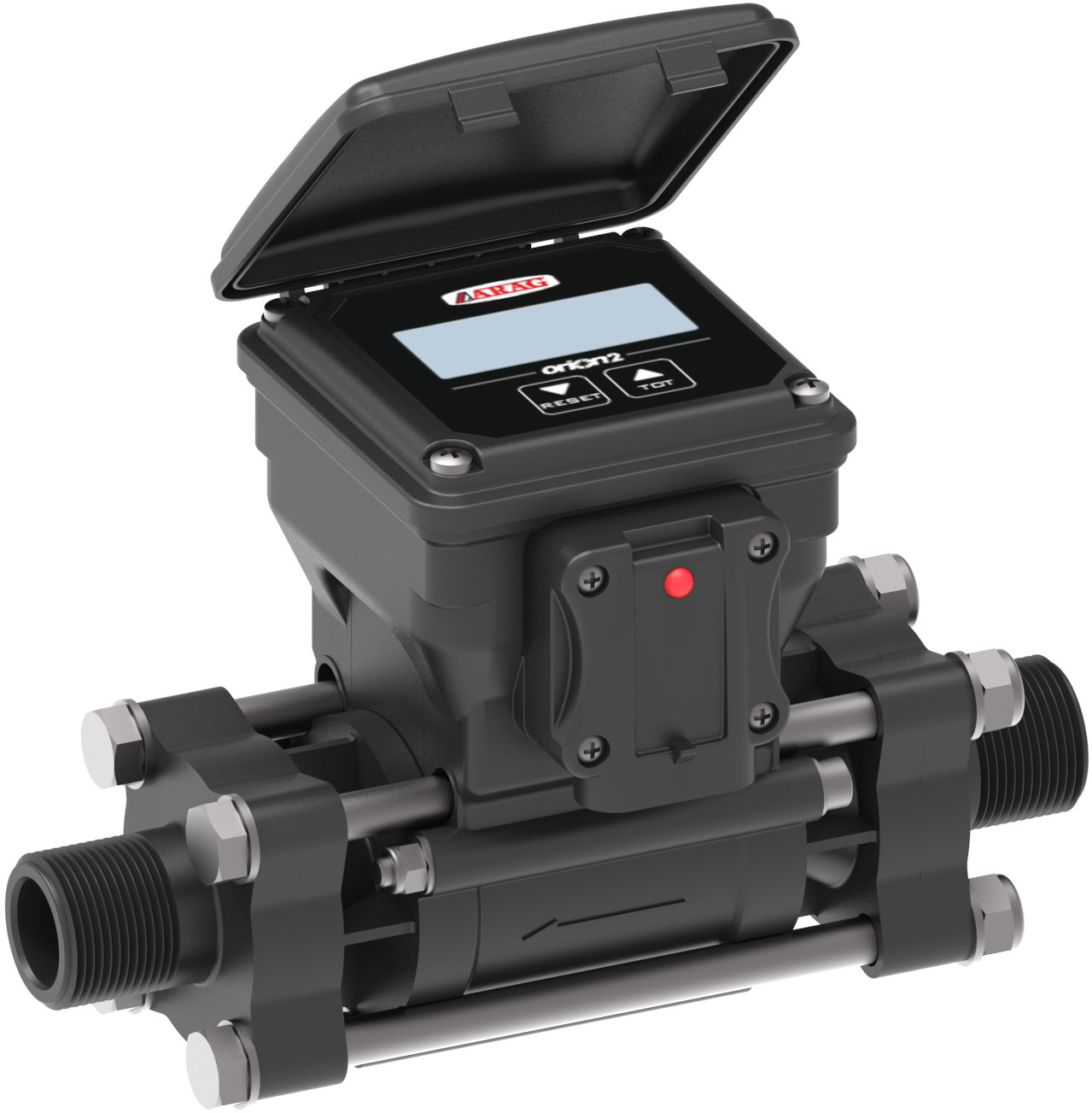

ORION 2 VISUAL FLOW #46222A61717

Flussometro elettromagnetico ORION 2 VISUAL FLOW con attacco filettato in Nylon® rinforzato con fibra di vetro

Mercato Internazionale

Codice	- F -	Caduta di pressione	Impulsi	Passaggio interno	Portata	Pressione MAX	Tipo
46212AG1313	G 3/4" M BSP	0.3bar	6000pls/l	4mm	0.3 ÷ 6l/min	20bar	Teflon®
46212A01313	G 3/4" M BSP	0.3bar	6000pls/l	5mm	0.5 ÷ 10l/min	20bar	Teflon®
46212A11313	G 3/4" M BSP	0.3bar	3000pls/l	7mm	1 ÷ 20l/min	20bar	Teflon®
46212A21313	G 3/4" M BSP	0.5bar	1200pls/l	10mm	2.5 ÷ 50l/min	20bar	Teflon®
46212A31414	G 1" M BSP	0.5bar	600pls/l	14mm	5 ÷ 100l/min	20bar	Teflon®
46212A41414	G 1" M BSP	0.5bar	300pls/l	18.5mm	10 ÷ 200l/min	20bar	Teflon®
46212A41515	G 1 1/4" M BSP	0.5bar	300pls/l	18.5mm	10 ÷ 200l/min	20bar	Teflon®
46222A51616	G 1 1/2" M BSP	0.2bar	150pls/l	28mm	20 ÷ 400l/min	20bar	PPVF
46222A61616	G 1 1/2" M BSP	0.5bar	100pls/l	28mm	30 ÷ 600l/min	20bar	PPVF
46222A61717	G 2" M BSP	0.5bar	100pls/l	28mm	30 ÷ 600l/min	20bar	PPVF
46222A71717	G 2" M BSP	0.5bar	75pls/l	28mm	40 ÷ 800l/min	20bar	PPFV
